Distech CDIY series auto-addressable and hot swappable IO modules come with color-coded terminal blocks, and optional HOA switches to suit CDIY-1000 / S1000 series controllers. Huge range is available.
Distech CDIY-16DI-00 16 point input extension module for Connected System Controller. Inputs: (16) Digital inputs.
| Product Code | CDIY-16DI-00 |
| Series | Eclypse |
| Power Supply | Internal Bus Powered |
| Inputs | 16DI |
| Hand / Off / Auto switches | No |
Distech CDIY-4UI4UO-00 8 point I/O extension module for Connected System Controller. Inputs: (4) Universal inputs. Outputs: (4) Universal outputs.
| Product Code | CDIY-4UI4UO-00 |
| Series | Eclypse |
| Power Supply | Internal Bus Powered |
| Inputs | 4UI |
| Outputs | 4UO |
| Hand / Off / Auto switches | No |
Distech CDIY-4UI4UOHOA-00 8 point I/O extension module for Connected System Controller. Inputs: (4) Universal inputs. Outputs: (4) Universal outputs with HOA switches and potentiometers.
| Product Code | CDIY-4UI4UOHOA-00 |
| Series | Eclypse |
| Power Supply | Internal Bus Powered |
| Inputs | 4UI |
| Outputs | 4UO |
| Hand / Off / Auto switches | Yes |
Distech CDIY-6UO-00 6 point I/O extension module for Connected System Controller. Inputs: None. Outputs: (6) Universal outputs.
| Product Code | CDIY-6UO-00 |
| Series | Eclypse |
| Power Supply | Internal Bus Powered |
| Inputs | 6UO |
| Hand / Off / Auto switches | No |

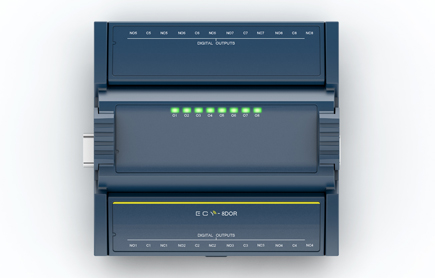

Distech CDIY-8DOR-00 8 point output extension module for Connected System Controller. Outputs: (8) Digital Form-C relay outputs.
| Product Code | CDIY-8DOR-00 |
| Series | Eclypse |
| Power Supply | Internal Bus Powered |
| Outputs | 8DO |
| Hand / Off / Auto switches | No |
Distech CDIY-8DORHOA-00 8 point output extension module for Connected System Controller. Outputs: (8) Digital Form-C relay outputs with HOA switches.
| Product Code | CDIY-8DORHOA-00 |
| Series | Eclypse |
| Power Supply | Internal Bus Powered |
| Outputs | 8DO |
| Hand / Off / Auto switches | Yes |
Distech CDIY-8UI-00 8 point I/O extension module for Connected System Controller. Inputs: (8) Universal inputs. Outputs: None.
| Product Code | CDIY-8UI-00 |
| Series | Eclypse |
| Power Supply | Internal Bus Powered |
| Inputs | 8UI |
| Hand / Off / Auto switches | No |
Distech CDIY-8UI6DOT-00 14 point I/O extension module for Connected System Controller. Inputs: (8) Universal inputs. Outputs: (6) Digital 24VAC Triac outputs.
| Product Code | CDIY-8UI6DOT-00 |
| Series | Eclypse |
| Power Supply | Internal Bus Powered |
| Inputs | 8UI |
| Outputs | 6DO |
| Hand / Off / Auto switches | No |
Distech CDIY-8UI6UO-00 14 point I/O extension module for Connected System Controller. Inputs: (8) Universal inputs. Outputs: (6) Universal outputs.
| Product Code | CDIY-8UI6UO-00 |
| Series | Eclypse |
| Power Supply | Internal Bus Powered |
| Inputs | 8UI |
| Outputs | 6UO |
| Hand / Off / Auto switches | No |
Distech CDIY-8UI6UOHOA-00 14 point I/O extension module for Connected System Controller. Inputs: (8) Universal inputs. Outputs: (6) Universal outputs with HOA switches and potentiometers
| Product Code | CDIY-8UI6UOHOA-00 |
| Series | Eclypse |
| Power Supply | Internal Bus Powered |
| Inputs | 8UI |
| Outputs | 6UO |
| Hand / Off / Auto switches | Yes |
