SFAR-S-ETH Modbus TCP to Modbus RTU/ASCII Gateway

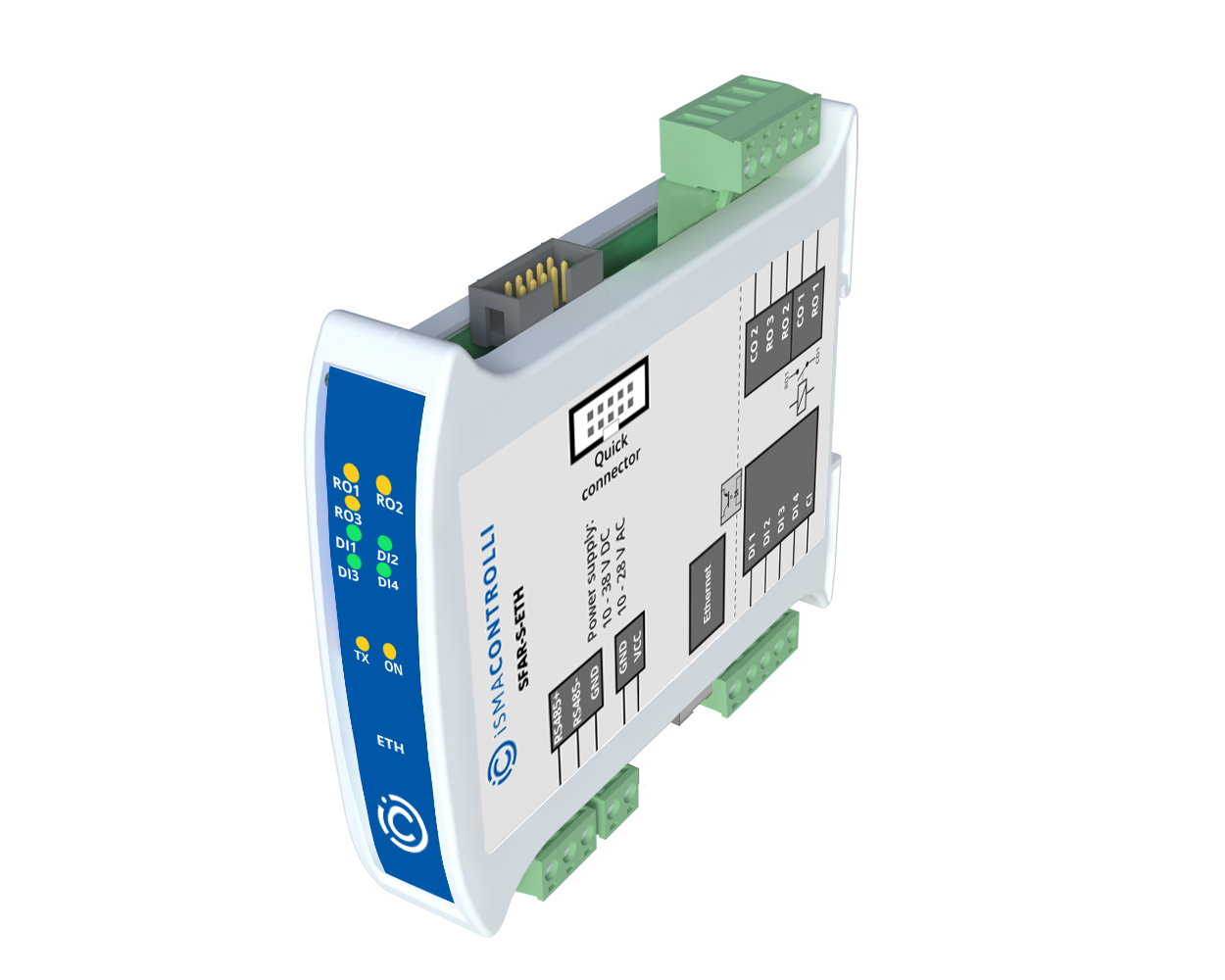

SfAR-S-ETH module is a Modbus TCP to Modbus RTU/ASCII gateway, allowing a connection of Modbus RTU/ASCII devices to the Modbus TCP network. The device has Ethernet and RS485 interfaces, 4 digital inputs (DI), and 3 relay outputs (RO).

SfAR-S-ETH offers a unique feature, the Device Table, which facilitates communication with devices connected to the RS485 port, making it even faster. The module is equipped with a set of LED indicators. The configuration of the module is carried out with our free software, the SfAR Configurator. A built-in mini USB allows for performing a primary configuration of the unit without an additional power supply. The module has been equipped with the Quick Connector system to simplify installation
